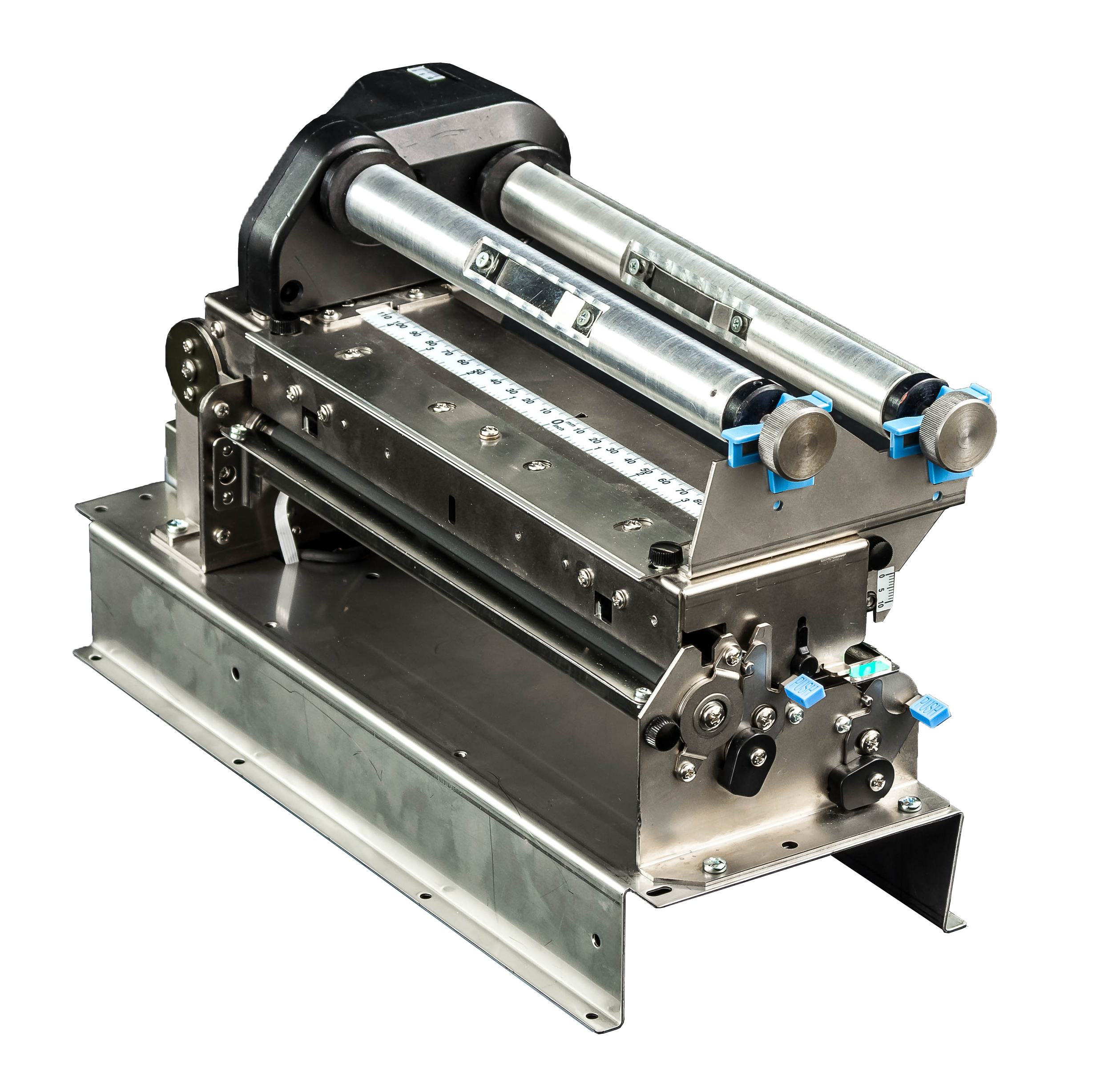

Microplex PM‑T8 Print Module

What applications is the PM‑T8 specifically engineered for?

The PM‑T8 is designed for high‑volume industrial labelling environments where wide‑format output, long duty cycles and precise barcode reproduction are critical. Typical use cases include pallet labelling, logistics hubs, warehouse automation, manufacturing lines and compliance‑driven workflows.

How does the PM‑T8 integrate with existing print infrastructures?

The PM‑T8 includes one of the broadest emulation libraries available, supporting ZPL II, EPL2, Datamax, Intermec, cab, Godex, IGP/PGL and many others. This allows it to drop into existing systems with minimal software changes, making it suitable for legacy replacements or mixed‑fleet environments.

What advantages does the 8‑inch print width provide in industrial workflows?

The wider format allows full A4 label printing without rotation, which eliminates orientation errors, prevents barcode distortion and reduces processing overhead. This is especially important for pallet labels, GS1‑compliant formats and large‑format identification labels.

How does the PM‑T8 maintain print quality during continuous operation?

The harmonic flat‑head technology ensures even heat distribution across the printhead, reducing thermal stress and extending printhead life. This results in consistent print density and barcode readability even during long production runs.

What media tolerances does the PM‑T8 support?

The module handles media widths from 100 to 222 mm, with a maximum printable width of 219 mm. It supports media thicknesses from 0.14 to 0.25 mm and works with continuous, fanfold and external roll‑fed stock. Both black‑mark and gap sensing are supported for precise registration.

How does the PM‑T8 perform in high‑duty industrial environments?

The mechanical design is built for continuous operation, with a robust frame, industrial‑grade components and a printhead rated for up to 50,000 metres. It is engineered for environments where uptime, repeatability and long‑term stability are essential.

What are the RFID capabilities of the PM‑T8?

The optional RFID module supports EPC Class 1 Gen 2 and ISO 18000‑63 standards. It offers read, write and verify functionality, with adjustable output power from 10 to 27 dBm. This makes it suitable for supply chain, asset tracking and compliance‑driven RFID applications.

How does the PM‑T8 reduce integration and maintenance overhead?

Its extensive emulation support reduces the need for custom drivers or middleware. The even‑heat printhead design lowers wear, reducing replacement frequency. Optional SOTI Connect support enables remote monitoring, configuration and diagnostics, reducing on‑site maintenance.

Is the PM‑T8 suitable for automated or embedded systems?

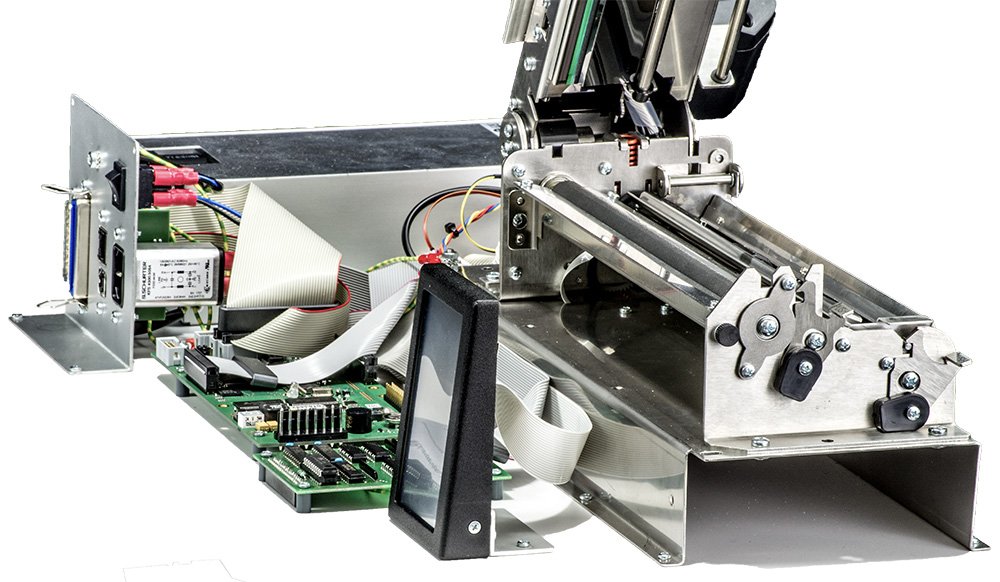

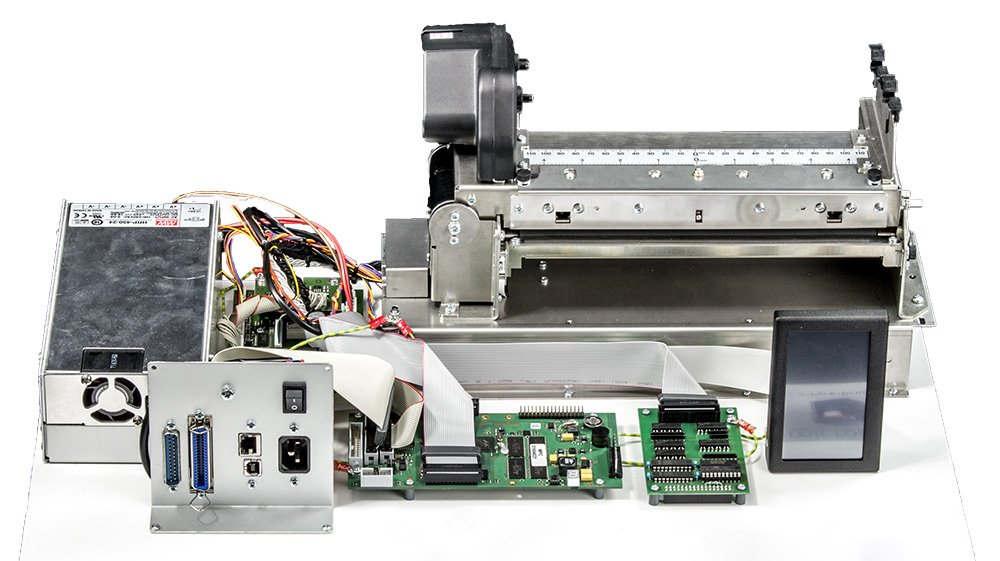

Yes. The MPC 8.x controller includes programmable GPIO, making it suitable for integration into automated lines, print‑and‑apply systems, robotics and industrial control environments.

How stable is the PM‑T8 in varying environmental conditions?

The PM‑T8 operates reliably between 5°C and 35°C with 45% to 75% non‑condensing humidity. Its mechanical and electronic design is optimised for industrial environments where temperature and humidity may fluctuate.

What throughput can be expected in real‑world use?

With print speeds up to 150 mm/s (6 ips), the PM‑T8 delivers consistent throughput even with dense barcodes or large‑format labels. The controller is optimised for rapid job switching and high‑volume batch processing.

What makes the PM‑T8 a strong replacement for older industrial print modules?

Its wide emulation support, robust mechanics, long printhead life and A4‑capable width make it a drop‑in upgrade for many legacy systems. It reduces downtime, improves print quality and supports modern workflows such as RFID and remote management.
